MLP — Exercises 1–4

Author: Felipe Maluli de Carvalho Dias Reproducibility: All figures are generated by solution_exercises.py and saved under assets/.

Math Rendering Issue

If mathematical equations are not displaying properly, try refreshing the page (Cmd+R or Alt+F5) or reloading the browser tab.

Installation

Clone or navigate to the project directory:
```
cd mlp-exercise
```

Create and activate a virtual environment:

python -m venv env
source env/bin/activate  # On Windows: env\Scripts\activate

Install dependencies:
```
pip install -r ../../requirements.txt
```
Run exercise calculation:
```
python solution_exercises.py
```

Exercise 1 — Manual Calculation of MLP Steps

Given by Teacher in Exercise 1:

\[x=\begin{bmatrix}0.5\\-0.2\end{bmatrix}, \quad y=1.0\]

\[W^{(1)}=\begin{bmatrix}0.3&-0.1\\0.2&0.4\end{bmatrix}, \quad b^{(1)}=\begin{bmatrix}0.1\\-0.2\end{bmatrix}\]

\[W^{(2)}=\begin{bmatrix}0.5&-0.3\end{bmatrix}, \quad b^{(2)}=0.2\]

\[\text{Activation: } \tanh\]

1) Forward pass

Hidden pre‑activations:

\[z^{(1)} = W^{(1)}x + b^{(1)}\]

\[= \begin{bmatrix}0.3&-0.1\\0.2&0.4\end{bmatrix} \begin{bmatrix}0.5\\-0.2\end{bmatrix} + \begin{bmatrix}0.1\\-0.2\end{bmatrix}\]

\[= \begin{bmatrix}0.3\cdot0.5 + (-0.1)\cdot(-0.2) \\ 0.2\cdot0.5 + 0.4\cdot(-0.2)\end{bmatrix} + \begin{bmatrix}0.1\\-0.2\end{bmatrix}\]

\[= \begin{bmatrix}0.27\\0.02\end{bmatrix} + \begin{bmatrix}0.1\\-0.2\end{bmatrix}\]

\[= \boxed{\begin{bmatrix}0.270000\\-0.180000\end{bmatrix}}\]

Hidden activations ($\tanh$ element‑wise):

\[h^{(1)} = \tanh\!\left(z^{(1)}\right)\]

\[= \boxed{\begin{bmatrix}0.263625\\-0.178081\end{bmatrix}}\]

Output pre‑activation and final output:

\[u^{(2)} = W^{(2)}h^{(1)} + b^{(2)}\]

\[= \begin{bmatrix}0.5&-0.3\end{bmatrix} \begin{bmatrix}0.263625\\-0.178081\end{bmatrix} + 0.2\]

\[= \boxed{0.385237}\]

\[\hat y = \tanh(u^{(2)}) = \boxed{0.367247}\]

2) Loss (MSE)

With one sample, $$ L = (y - \hat y)^2 = (1 - 0.367247)^2 = \boxed{0.40037691}. $$

3) Backward pass — full gradients

Start with

\[\frac{\partial L}{\partial \hat y} = 2(\hat y-y) = \boxed{-1.265507}\]

\[\frac{\partial \hat y}{\partial u^{(2)}} = 1-\tanh^2(u^{(2)}) = \boxed{0.865130}\]

\[\Rightarrow \quad \frac{\partial L}{\partial u^{(2)}} = \boxed{-1.094828}\]

Output layer:

\[\frac{\partial L}{\partial W^{(2)}} = \frac{\partial L}{\partial u^{(2)}} \cdot h^{(1)}\]

\[= \boxed{\begin{bmatrix}-0.288624&0.194968\end{bmatrix}}\]

\[\frac{\partial L}{\partial b^{(2)}} = \boxed{-1.094828}\]

Hidden layer: propagate through $\tanh$

\[\frac{\partial L}{\partial h^{(1)}} = \frac{\partial L}{\partial u^{(2)}} \cdot W^{(2)\top}\]

\[= \boxed{\begin{bmatrix}-0.547414\\0.328448\end{bmatrix}}\]

\[\frac{\partial h^{(1)}}{\partial z^{(1)}} = 1-\tanh^2(z^{(1)})\]

Hence

\[\frac{\partial L}{\partial z^{(1)}} = \frac{\partial L}{\partial h^{(1)}} \odot \big(1-\tanh^2(z^{(1)})\big)\]

\[= \boxed{\begin{bmatrix}-0.509370\\0.318032\end{bmatrix}}\]

Gradients for the first layer parameters:

\[\frac{\partial L}{\partial W^{(1)}} = \frac{\partial L}{\partial z^{(1)}} \cdot x^\top\]

\[= \boxed{\begin{bmatrix} -0.254685&0.101874\\ 0.159016&-0.063606 \end{bmatrix}}\]

\[\frac{\partial L}{\partial b^{(1)}} = \boxed{\begin{bmatrix}-0.509370\\0.318032\end{bmatrix}}\]

4) One gradient-descent update (Step 4 uses $\eta=0.1$)

Update rule (inline): $\theta \leftarrow \theta - \eta\,\nabla_\theta L$

Display form:

\[ \theta \leftarrow \theta - \eta\,\nabla_\theta L \]

\[W^{(2)}_\text{new} = W^{(2)} - 0.1 \cdot \frac{\partial L}{\partial W^{(2)}}\]

\[= \boxed{\begin{bmatrix}0.528862&-0.319497\end{bmatrix}}\]

\[b^{(2)}_\text{new} = \boxed{0.309483}\]

For the first layer,

\[W^{(1)}_\text{new} = W^{(1)} - 0.1 \cdot \frac{\partial L}{\partial W^{(1)}}\]

\[= \boxed{\begin{bmatrix} 0.325468&-0.110187\\ 0.184098&0.406361 \end{bmatrix}}\]

\[b^{(1)}_\text{new} = \boxed{\begin{bmatrix}0.150937\\-0.231803\end{bmatrix}}\]

Per the submission requirements, all intermediate calculations (matrix multiplications, tanh applications, full gradient derivations) have been shown with up to least 4 decimals.

Exercise 2 — Binary classification with `make_classification`

Data: 1000 samples, 2 features, 2 classes; to achieve 1 cluster for class 0 and 2 clusters for class 1, we generate class‑specific subsets with different n_clusters_per_class and combine them before the 80/20 split.
MLP (from scratch): 2 → 10 → 1, tanh → sigmoid, BCE, full‑batch GD.

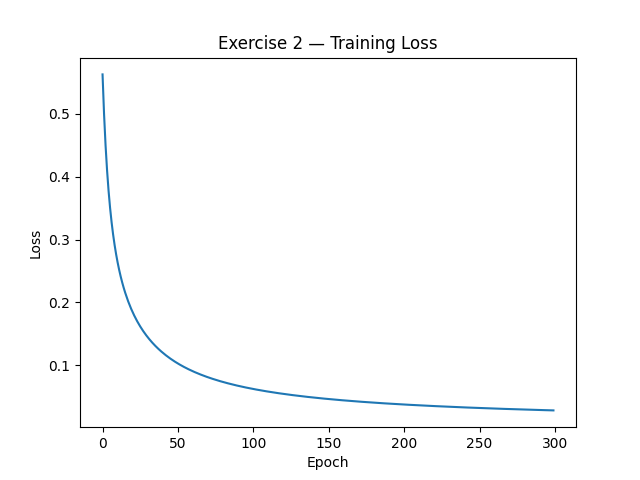

Result: Test accuracy 97.50%; training curve saved to assets/ex2_loss.png.

Exercise 3 — 3‑Class with exact code reuse

Data: 1500 samples, 4 features, classes=3 with clusters per class = [2,3,4]; generate per‑class subsets and combine; 80/20 split.
MLP: exact same MLP class and training loop as Exercise 2, with output size 3 and softmax+CCE; architecture 4 → 16 → 3.

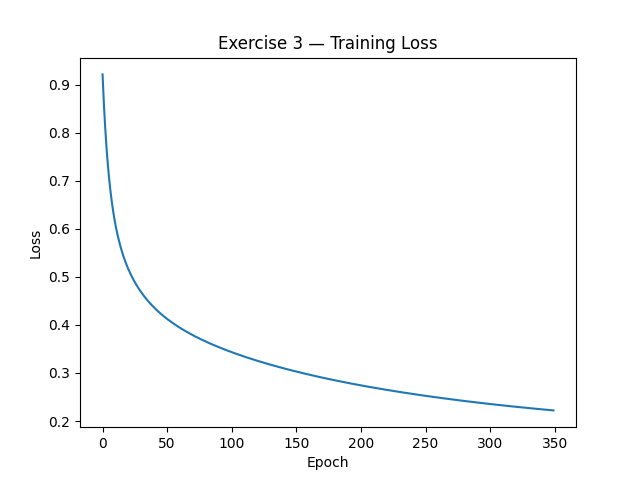

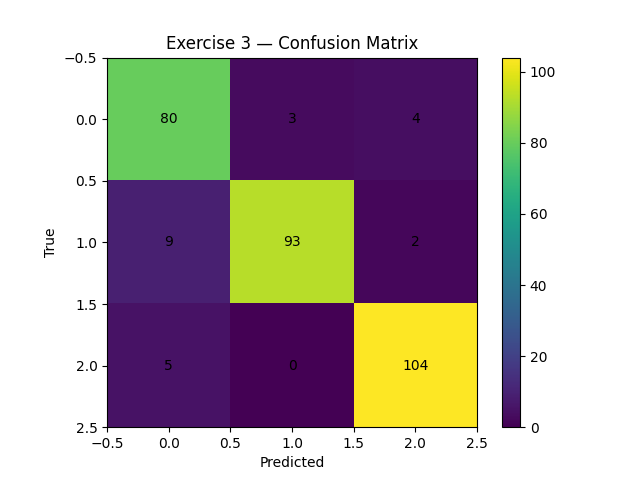

Result: Test accuracy 92.33%; see assets/ex3_loss.png and assets/ex3_confusion.png.

Exercise 4 — Deeper MLP (≥2 hidden layers)

Architecture: 4 → 24 → 12 → 3 (tanh, tanh, softmax).

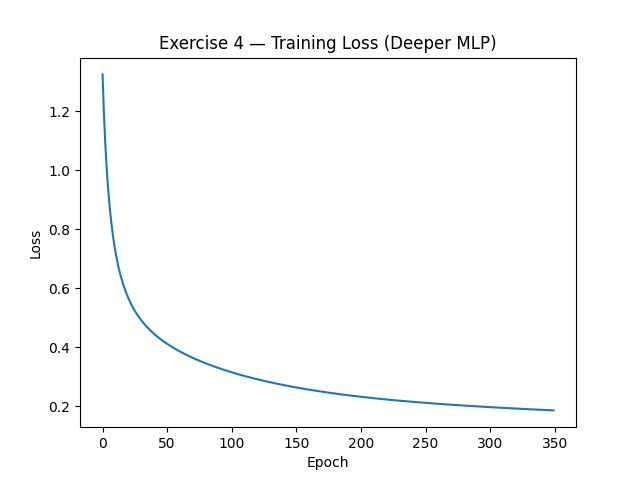

Result: Test accuracy 92.00%; curve at assets/ex4_loss.png.

AI Use

AI collaboration was used in this exercise (code + readme). Also, the latex code was generated with AI (I do not know how to write latex).
