Activity — Data Preparation and Analysis for Neural Networks

Author: Felipe Maluli de Carvalho Dias Reproducibility: All figures are generated by solution_exercises.py and saved under assets/.

Installation

Clone or navigate to the project directory:
```
cd data-exercise
```

Create and activate a virtual environment:

python -m venv env
source env/bin/activate  # On Windows: env\Scripts\activate

Install dependencies:
```
pip install -r ../../requirements.txt
```
Run exercise calculation:
```
python solution_exercises.py
```

Exercise 1 — 2D Classification and Separability

Chosen parameters (the prompt didn’t specify explicitly):

4 classes, 100 samples each;
Means: C0=(-2, -2), C1=(2, -2), C2=(2, 2), C3=(-2, 2);
σ = 0.9 (covariance = 0.9²·I).

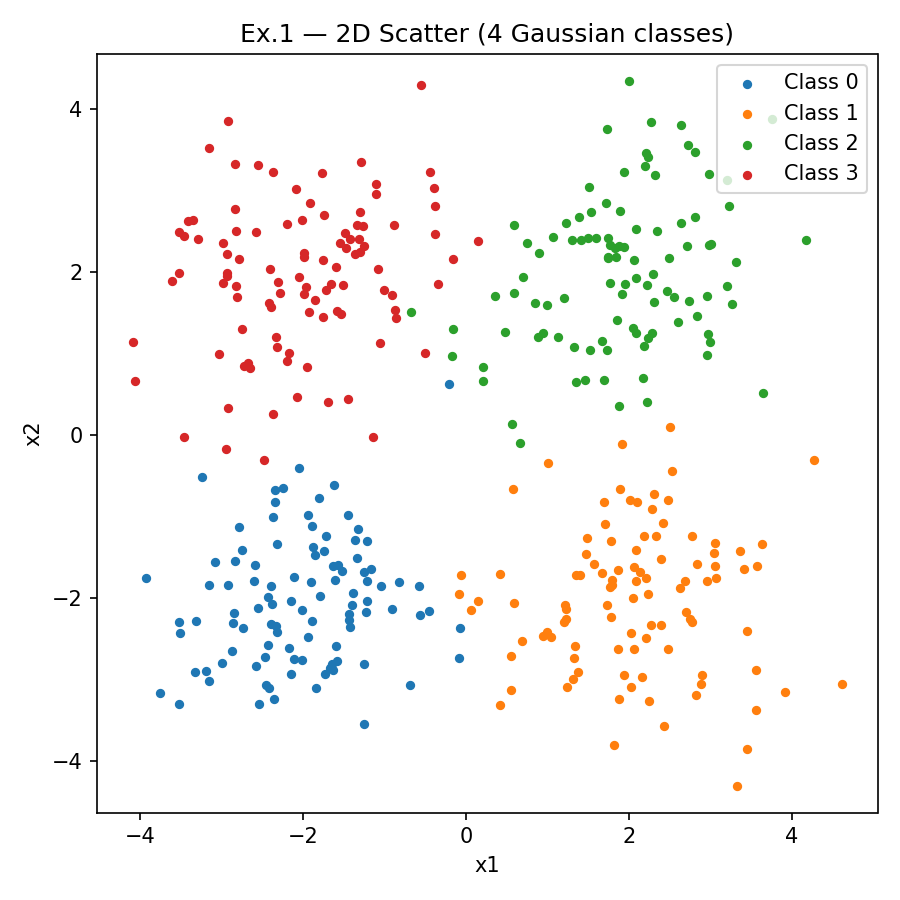

2D scatter:

Decision regions (MLP with tanh):

Analysis: The four distributions form blobs with moderate overlap. A single linear boundary cannot separate all classes; a multi-class linear classifier (softmax) would produce multiple linear frontiers (one-vs-rest). The (nonlinear) MLP above approximates a polygonal partition adapted to local densities, reducing errors in overlap zones.

Exercise 2 — Nonlinearity in 5D (PCA to 2D)

Chosen parameters:

Class A: μ_A = [0, 0, 0, 0, 0] and Σ_A (5×5) positive definite;
Class B: μ_B = [0.6, 0.4, -0.6, 0.6, -0.4] and Σ_B ≠ Σ_A (5×5) positive definite. Explicit matrices are in the notebook/code.

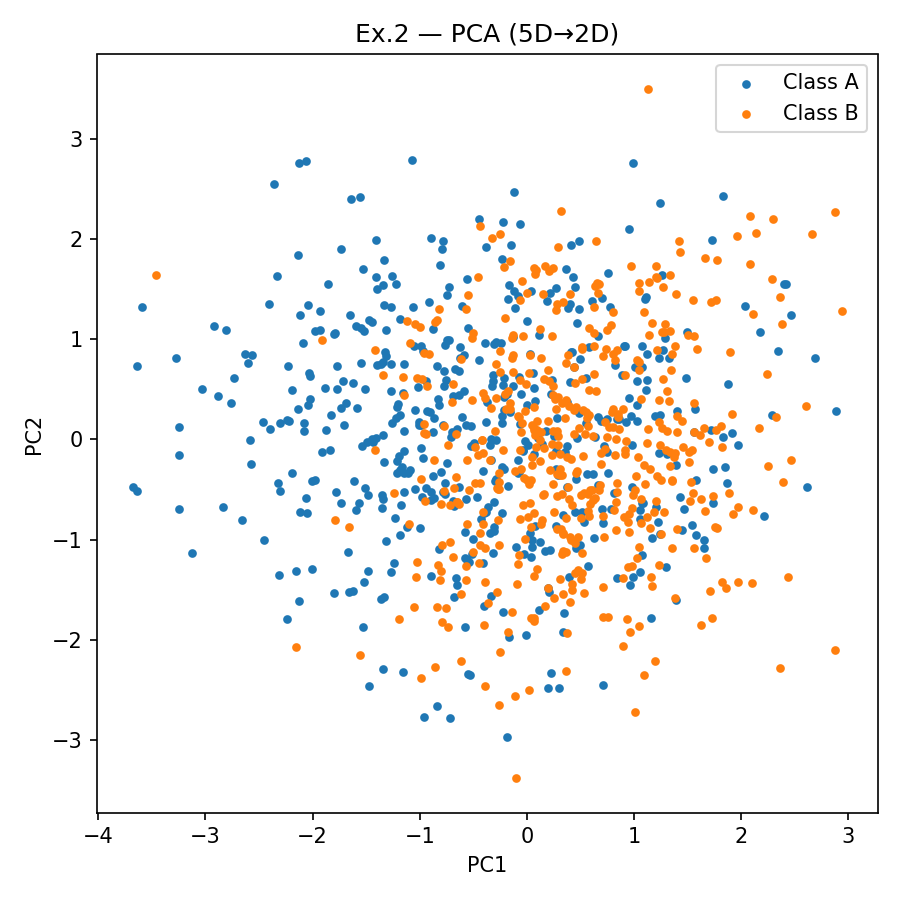

PCA projection (5D→2D):

Analysis: Overlap in the 2D projection indicates the structure is not cleanly linearly separable, because different covariances imply quadratic optimal boundaries (QDA). A perceptron would fail; a network with hidden layers + tanh activations can approximate the required nonlinear surfaces.

Exercise 3 — Spaceship Titanic (Kaggle) — Preprocessing

Goal: Transported (binary) indicates whether a passenger was transported to another dimension (positive class).

Main features and types:

Numerical: Age, RoomService, FoodCourt, ShoppingMall, Spa, VRDeck, CabinNum (engineered).
Booleans: CryoSleep, VIP.
Categorical: HomePlanet, Destination, Deck, Side (derived from Cabin).
Not used in the model: Name, Cabin (after feature engineering), PassengerId (kept only for external reference).

Missing data handling:

Numericals → median (robust to outliers).
Booleans → mode.
Categoricals → most_frequent then One-Hot (handle_unknown=ignore).

Scaling (tanh-friendly):

Standardization (StandardScaler): mean 0, std 1 — appropriate because tanh is centered at 0, which speeds up training and reduces initial saturation.

Histograms before/after:

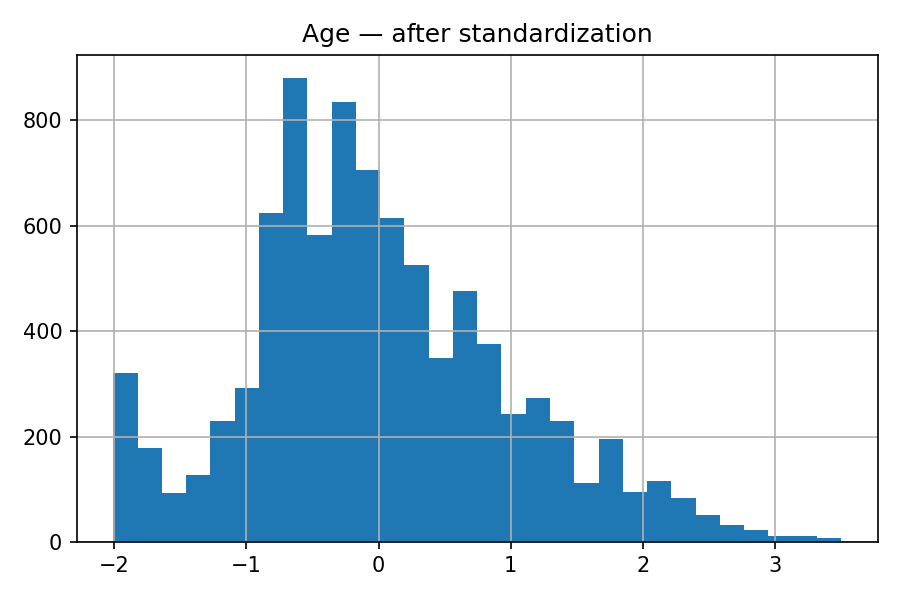

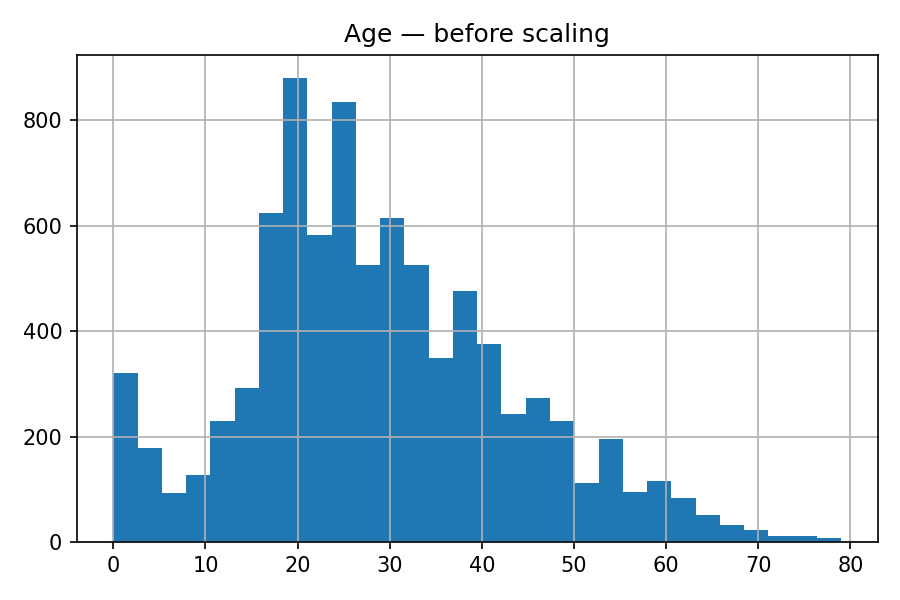

`Age` before	`Age` after

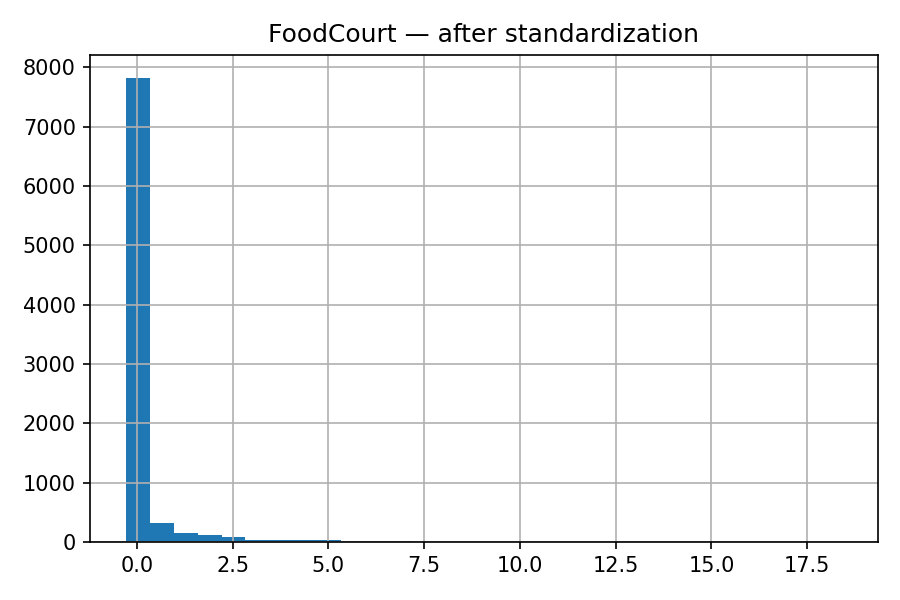

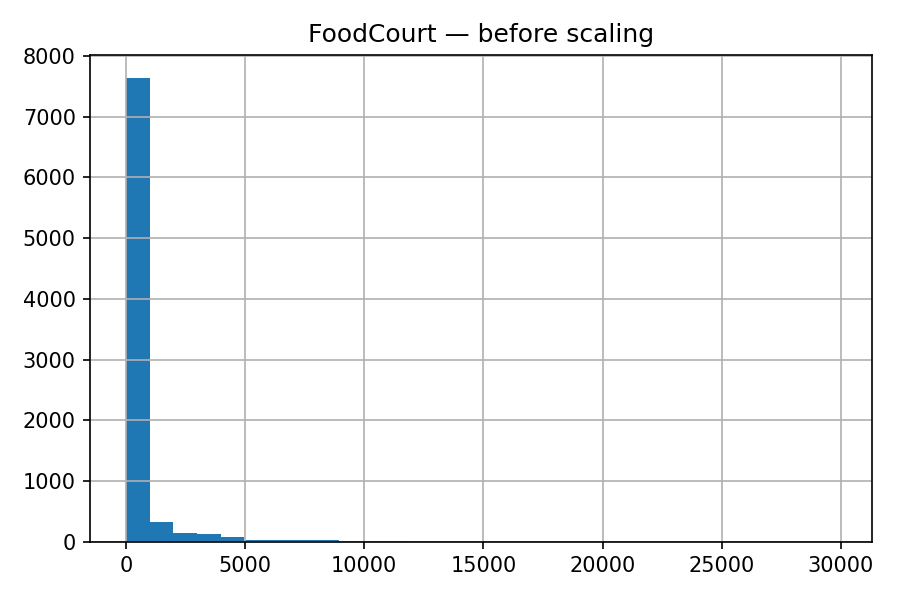

`FoodCourt` before	`FoodCourt` after

Files ready for modeling:

X_train_processed.csv — processed features for training (aligned with train.csv).
X_test_processed.csv — features for test/submission.
preprocessing_feature_names.txt — column names after One-Hot.

AI Use

AI collaboration was used in this exercise (code + comments + readme).
